1 lan port 1 wan port 300mbps Cat 4 strong 4g lte router

Name: 1 lan port 1 wan port 300mbps Cat 4 strong 4g lte router
Brand: Junhaoyue
Rating: 15 (3 reviews)

Item no.:	HY8330
CPU:	ASR 1803S+MT7628N
4g frequency:	FDD:B1/B3/B5/B7/B8/B20/B28; TDD:B38/B40/B41; WCDMA B1/B5/B8
Price:	USD 18.00 - 25.00

Add to Basket

Product Description Performance Features and Material

Product Description

Description	1 lan port 1 wan port 300mbps Cat 4 strong 4g lte router
Item no.	HY8330
CPU	ASR 1803S+MT7628N

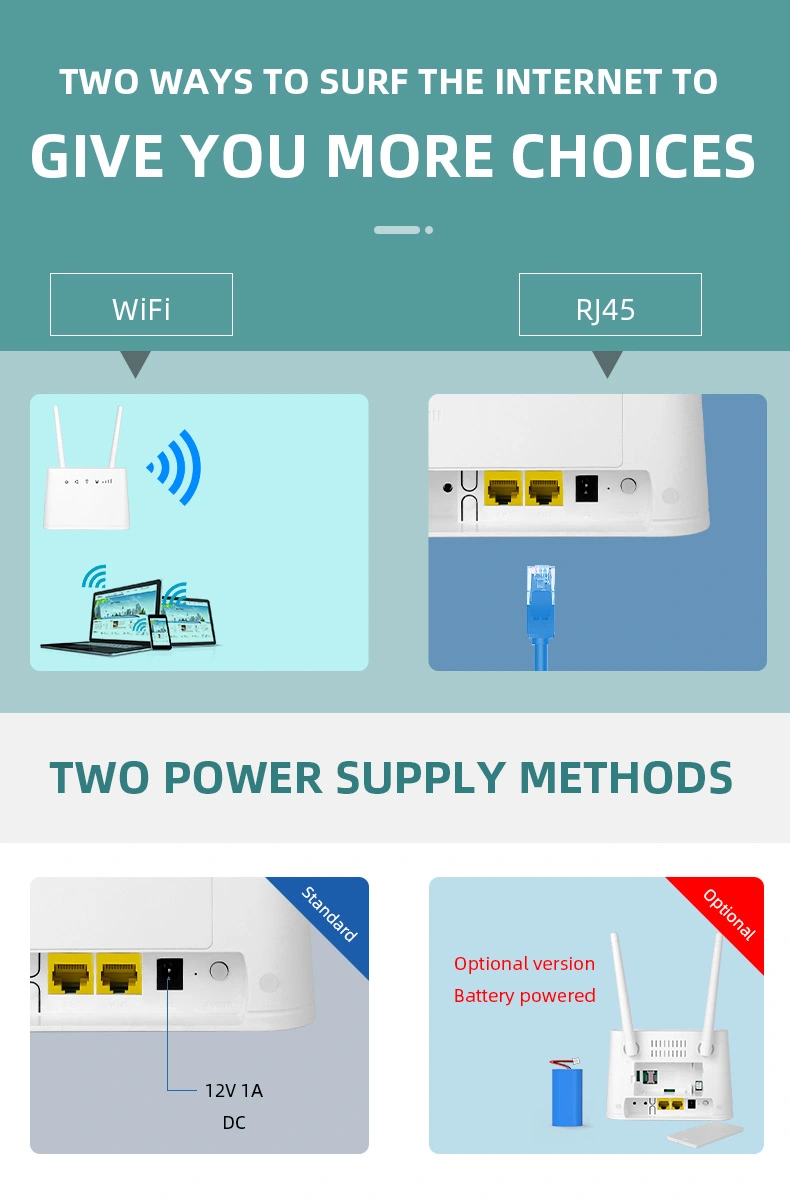

Interface	1 WAN 1 LAN
Button	Reset/wps/wifi/battery level
Power Suppply	DC 12V/1A
DDR/SPI	64MBytes/16MBytes
SIM Card	2 FF

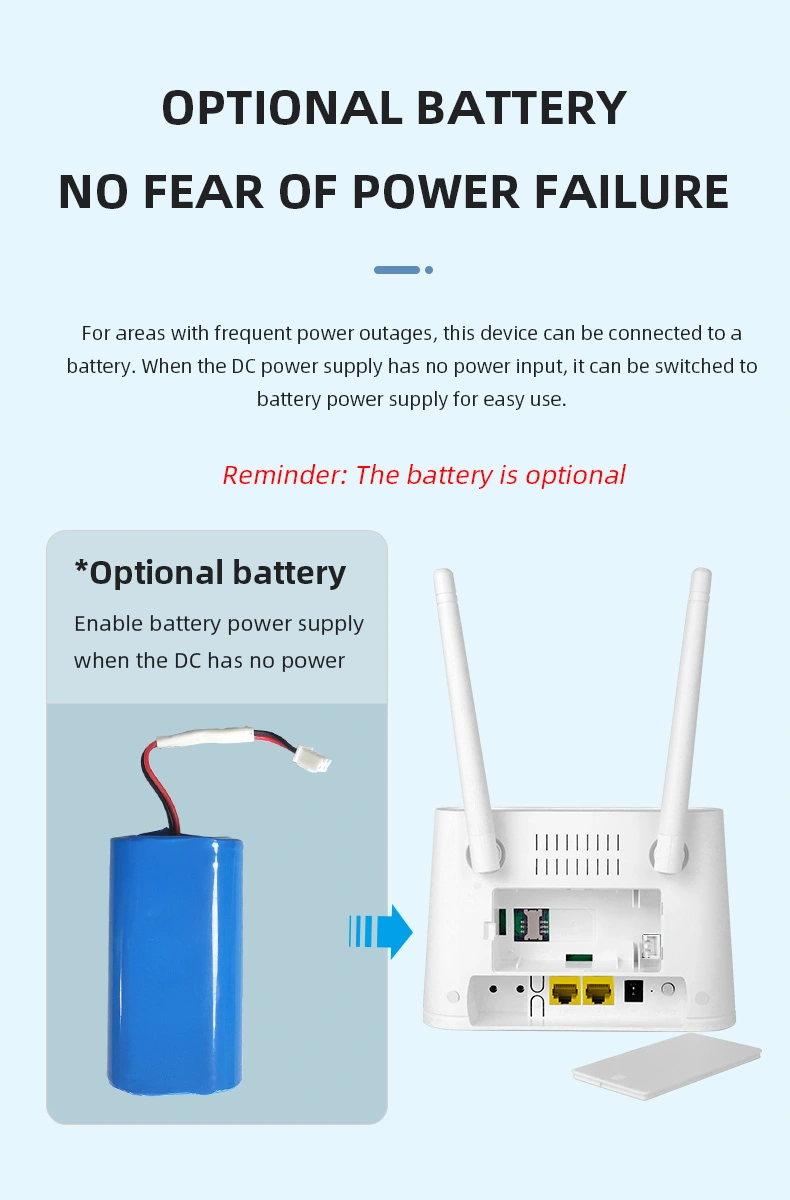

Battery	7.4V 2*2000mAH
MIMO for WiFi	3dbi X 2
Max. transmitter power for WiFi	802.11b 24dBm±2dBm; 802.11g 16dBm±2dBm; 802.11n 15dBm±2dBm;
WiFi security	WPA/WPA2
Software	APN Setting、Device Settings、Routing Settings、Firewall Settings
System	Windows XP, Windows Vista, Windows 7, Windows 10, MAC, Linux
Browser	IE (7.0 and later), Firefox (3.0 and later), Safari (4.0 and later), Opera (10.0 and later), Chrome (10.0 and later)
ML352-JD3-AFL	FDD:B1/B3/B5/B7/B8/B20/B28; TDD:B38/B40/B41; WCDMA B1/B5/B8
Protocol	IEEE 802.11n; IEEE 802.11g; IEEE 802.11b
Operating Environment	Operating Temperature:Normal:0°C to +45°C; Operating Temperature:-20° C to +70° C Operating Humidity:5%~ 95% Storage Humidity:5%~ 95%

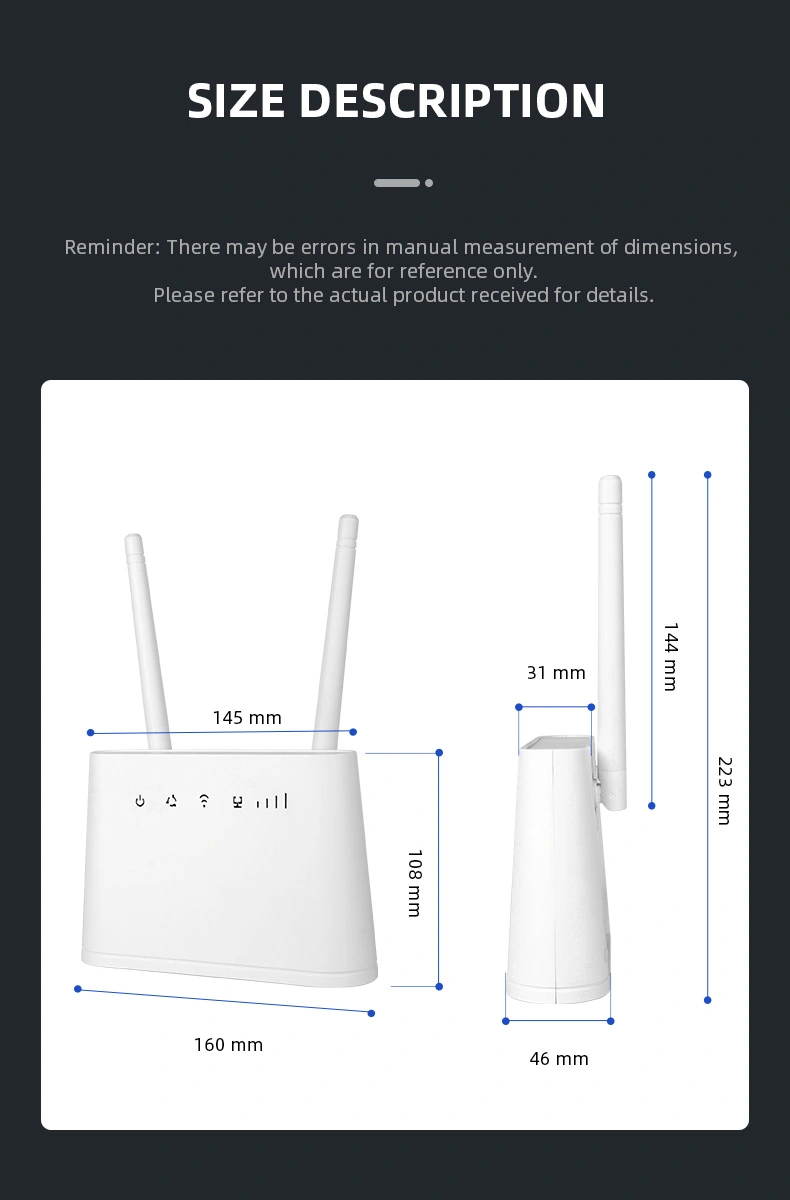

Dimension	Device: 20176cm; 0.37Kg/pc;
Dimension	40pc/ctn; CTN size: 6340.535cm; G.W.: 16Kg/ctn;

Performance Features and Material

Advantages	300Mbps Cat 4 LTE: Delivers fast mobile internet speeds, suitable for heavy data usage and high-speed connectivity needs. Single LAN and WAN Ports: Provides dedicated interfaces for flexible network configurations, ideal for connecting various devices. Strong 4G LTE Signal: Ensures a reliable connection even in areas with weaker signals, enhancing the user's internet experience. Quiet Operation: Designed with a noiseless cooling system, perfect for use in quiet environments without打扰ing background noise. User-Friendly Interface: Features separate LAN and WAN interfaces for easy network expansion and device connection.
Product Description	The HY8330 is a robust 4G LTE router designed for reliable and high-speed internet connectivity. With 300Mbps Cat 4 LTE capabilities, it offers swift data transfer rates, making it perfect for streaming and large file downloads. Its single LAN and WAN ports allow for straightforward network setup, while the strong 4G LTE signal ensures a stable connection. The router's quiet operation makes it suitable for use in any setting, and its user-friendly interface simplifies network management. Priced competitively, the HY8330 is an excellent choice for those requiring a dependable and efficient internet solution.
Guidelines for use	Power Activation: Connect the router to a power source and initiate the boot sequence. SIM Card Insertion: Place a compatible 4G SIM card into the designated slot. Network Integration: Link your devices to the router's WiFi network or utilize the LAN/WAN ports for a wired connection.
How to Install	Optimal Placement: Position the router in a well-ventilated area with clear access to cellular signals for the best reception. Power Connection: Use the supplied power adapter to connect the router to an electrical outlet. Initial Sync: After powering on, allow the router to sync with the cellular network and establish a connection.
How to Set Up	Interface Access: Connect your computer to the router's network and navigate to the configuration page through a web browser. Network Customization: Set up the WiFi network name (SSID) and password, and configure the internet access settings as per your service provider's details. Advanced Tweaks: For advanced users, delve into additional settings to optimize network performance and security.
Usage Precautions	Ambient Protection: Shield the router from extreme temperatures and moisture to prolong its lifespan and maintain peak performance. Software Updates: Keep abreast of software updates to leverage the latest features and security patches. Antenna Positioning: If the router is equipped with external antennas, adjust them for optimal signal reception and coverage. Secure Access: Implement a strong password and enable network encryption to safeguard against unauthorized access. Routine Checks: Conduct regular checks on the router's performance and address any issues to ensure continuous and stable internet service.
